Ad hoc material - Fire Protective systems

MINERAL WOOL PANELS

Mineral Wool Panels are matt brown fibrous wool panels which are bio-soluble and have no adverse environmental effects. Mineral Wool Panels can be used for various applications such as thermal insulation, acoustic insulation, fire stopping seals and heat and fire insulation. The Mineral Wool Panel unit size is 1.2m x 0.6m x 50mm.

APPLICATIONS:

  • Thermal insulation for commercial and industrial applications, acoustic insulatio n between dry walling or as roof insulation and fire stopping seals used in combination with Pyrosafe WB or KBS Coating

PROPERTIES:

  • Non combustible, bio soluble, dust free, odourless and excellent thermal properties

TECHNICAL SPECIFICATIONS:

Density: 160kg/m³
Thermal conductivity: (K-Value) Maximum 0.043 W/mK
Thermal resistance: (R-Value) 3.7m² K/W
Sound absorption coefficient: 0.14 – 0.99
Moisture absorption coefficient: 0.3%
Recoating: 6 hours

I need more information, Please contact me?

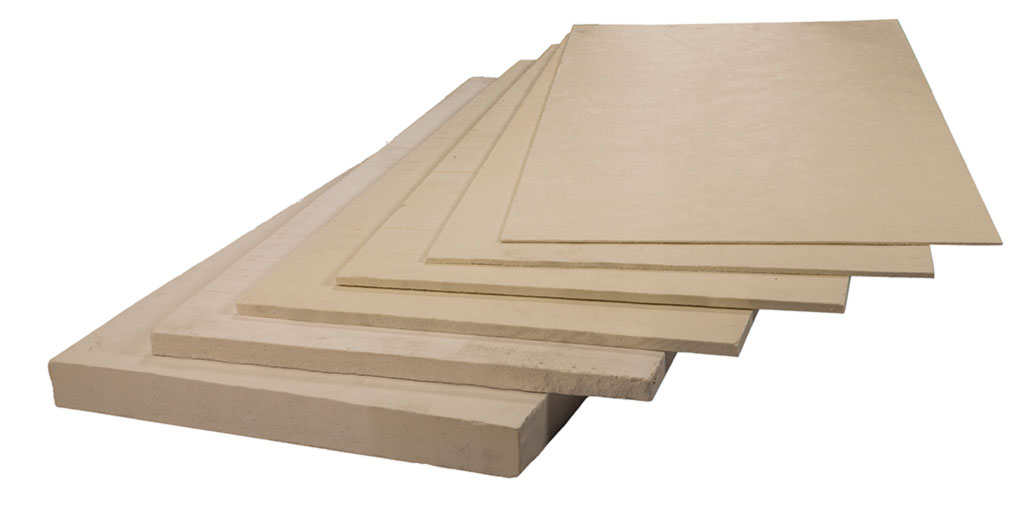

CALCIUM SILICATE FIRE BOARD

Calcium Silicate Fire Board is a smooth, asbestos free fire board with good thermal conductivity. Calcium Silicate Boards can be used for various applications, including ceilings, roofs, floor partitions, external walls, ventilation and smoke extraction ducts, tunnel fire protection, smoke barriers, as well as a cladding material around wooden panelling. The Calcium Silicate Board unit size is 1.220m x 2.440m x 12mm.

APPLICATIONS:

  • Structural steel, ceiling, roofs, floor penetration, external walls, smoke barriers, concrete upgrading, ventilation and smoke extraction ducts

PROPERTIES:

  • Non combustible, moisture resistant and excellent thermal properties

TECHNICAL SPECIFICATIONS:

Density: 1100 – 1400 kg/m³
Thermal conductivity (K-Value): ± 0.17 W/mK
Thermal resistance (R-Value): 0.069m² W/mK
Moisture content: ±< 11.5
Weight: 50kg
Compressive strength: 8 N/mm²
Test Report: 201530469

I need more information, Please contact me?
