We supply thermocouple sensors designed for industrial use, available in Type J, K, N, T, and other custom grades based on your requirements. Our selection of thermocouples encompasses mineral-insulated designs, as well as wire and bead configurations. The electrical connectivity of these sensors offers a high level of customization, featuring a variety of terminal heads, transmitters, and optional displays to choose from.
We supply RTD sensors featuring Pt100 sensors, and we also have the capability to provide Pt200 and Pt1000 sensors based on specific requests. Our range of RTD sensors includes options for mineral-insulated designs. Additionally, we offer a variety of optional extras such as terminal enclosures, transmitters, and displays to meet diverse requirements.
Thermowells are meticulously crafted to align with the distinct demands of diverse industrial processes. They are meticulously fashioned from select steel grades to ensure extended operational life within the intended environment. These chosen steel grades encompass ASTM 316, ASTM 310, Kanthal® APM, Alloy 600, and several others, each tailored to provide optimal performance in its designated application.
We supply thermocouples and resistance temperature detectors (RTD's) in accordance with widely recognized standard configurations. Additionally, if our clients have specific needs, we create and provide customized structures that align with their intended usage. The following presents an outline of our product arrangements.

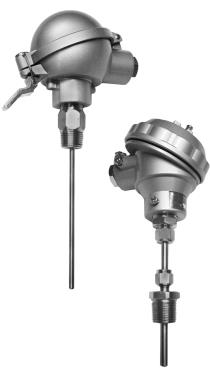

TLSC1 / TLSR1
Structure featuring a threaded process connection and terminal head, designed for supply purposes. This apparatus is adaptable for provision with either a transmitter mounting plate or a ceramic terminal block. A diverse selection of terminal heads can be chosen from (see page 18 for options). This configuration offers the flexibility for installation within a thermowell or directly into the process utilizing an adjustable or fixed fitting mechanism.
TLSC2 / TLSR2
The design features adaptable extensions and, for thermocouples, swift detachable connectors and ports (if desired). The configuration can be integrated within a thermowell or directly into the operational setup using a modifiable compression fitting.

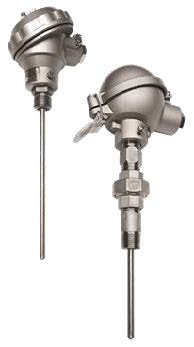

TLSC5 / TLSR5
Component featuring threaded process connections, a terminal head, and a spring-loaded interchangeable insert. The insert comprises a 6mm diameter stem, offering a choice between a mounting plate for a transmitter or a ceramic terminal block designed for electrical connections. A diverse selection of terminal heads is at your disposal (for more details, please consult page 18). Additionally, the component offers an extension neck, a hex nipple, or a NUN neck, each available in various lengths. Secure installation into a thermowell is facilitated through a fixed thread located on the extension neck.
We supply thermocouples and resistance temperature detectors (RTD's) in accordance with widely recognized standard configurations. Additionally, if our clients have specific needs, we create and provide customized structures that align with their intended usage. The following presents an outline of our product arrangements.
TLSC1
Structure featuring a threaded process connection and terminal head, designed for supply purposes. This apparatus is adaptable for provision with either a transmitter mounting plate or a ceramic terminal block. A diverse selection of terminal heads can be chosen from (see page 18 for options). This configuration offers the flexibility for installation within a thermowell or directly into the process utilizing an adjustable or fixed fitting mechanism.
This serves as an industrial-grade thermocouple sensor designed to cater to a variety of applications. It is offered in Type J, K, N, T, and can also be provided in other grades as per specific requests. The thermocouple is composed of fixed inserts with varying diameters, accompanied by a choice of either a transmitter mounting plate or a ceramic terminal block. The crucial hot junction within the thermocouple can be configured as either "grounded" or "ungrounded" from the protective sheath.
This product line encompasses a diverse selection of terminal heads, allowing for flexible customization. Installation options for the thermocouple include fitting it into a thermowell or directly integrating it into the industrial process through the use of adjustable or fixed fittings.
Product design and drawing
Technical information
Measuring range
Designation
Type J (Fe-CuNi)
Type K (NiCr-Ni)
Type N (NiCr-NiSi)
Type T (Cu-CuNi)
Measuring range limits
-210 to +760 °C (-346 to +1400 °F)
-270 to +1100 °C (-454 to +2012 °F)
-270 to +1100 °C (-454 to +2012 °F)
-270 to +400 °C (-454 to +725 °F)
The above range may vary depending on limitations of electrical connection. chosen and the jacket material of the insert.
Accuracy
Standard
ASTM E230-03/ANSI MC96.1
Type
J (Fe-CuNi)
K (NiCr-Ni) N (NiCr-NiSi)
T (Cu-CuNi)
Special tolerance, the larger respective value applies
±1.1 K or ±0.004 |t| (0 to 760 °C)
±1.1 K or ±0.004 |t| (0 to 1260 °C)
±0.5 K or ±0.004 |t| (0 to 370 °C)
Operating conditions
Standard
Maximum ambient temperature
Type
Without mounted head transmitter
With mounted head transmitter
Special tolerance, the larger respective value applies
Depends on the terminal head and the cable glands used
This product is available in the complete range of heads
Transmitters (Optional)
We specialize in supplying thermocouples equipped with transmitters, enhancing both accuracy and reliability when contrasted with directly wired alternatives. Our selection encompasses a diverse array of transmitters that are PC-programmable, featuring:
- HART® Programmable Transmitters - Profibus® PA Head Transmitters - Foundation Fieldbus™ Head Transmitters
Displays (Optional)
We have the capability to supply thermocouples equipped with pluggable displays designed to show real-time measured data, identification details, and any occurrences of faults. This entails the necessity of employing an appropriate terminal head that features a display window.
TLSC2
The design features adaptable extensions and, for thermocouples, swift detachable connectors and ports (if desired). The configuration can be integrated within a thermowell or directly into the operational setup using a modifiable compression fitting.
This thermocouple sensor, designed for industrial applications, is available in Type J, K, N, T, and other grades upon request. It offers a range of insert diameters and sheath materials to suit diverse needs. The thermocouple can be supplied with flexible tails, a quick disconnect plug, or a combination of both, allowing for flexible installation options.
The positioning of the hot junction is adaptable, with the choice of either a "grounded" or "ungrounded" configuration from the sheath. This flexibility caters to different measurement scenarios. The thermocouple's integration is further enhanced by its compatibility with either a thermowell or direct installation into the process through an adjustable compression fitting.
Particularly valuable in the ferrochrome industry, these thermocouple assemblies excel in measuring temperatures, especially in environments requiring lengths exceeding 15 meters. Their robust design is well-suited to tackle challenges posed by molten metal splashing.
Product design and drawing
Technical information
Measuring range
Designation
Type J (Fe-CuNi)
Type K (NiCr-Ni)
Type N (NiCr-NiSi)
Type T (Cu-CuNi)
Measuring range limits
-210 to +760 °C (-346 to +1400 °F)
-270 to +1100 °C (-454 to +2012 °F)
-270 to +1100 °C (-454 to +2012 °F)
-270 to +400 °C (-454 to +725 °F)
The above range may vary depending on limitations of electrical connection. chosen and the jacket material of the insert.
Accuracy
Standard
ASTM E230-03/ANSI MC96.1
Type
J (Fe-CuNi)
K (NiCr-Ni) N (NiCr-NiSi)
T (Cu-CuNi)
Special tolerance, the larger respective value applies
±1.1 K or ±0.004 |t| (0 to 760 °C)
±1.1 K or ±0.004 |t| (0 to 1260 °C)
±0.5 K or ±0.004 |t| (0 to 370 °C)
Operating conditions
Standard
Maximum ambient temperature
Type
Cable type
Plug
Special tolerance, the larger respective value applies
PVC: 80°C Fiberglass: 482°C Teflon: 204°C
Standard miniature plug: 90°C Standard plug: 204°C High temperature plugs available upon request.
Plugs, jacks and cables are supplied based on colour coding per ASTM E1129 / E1129M-98 and ASTM E1684. Standard configurations that are available are:
Mini plug with flat pins
Mini plug with flat pins +female jack
Standard large plug with round pins
Standard large plug with round pins + female jack
TLSC5
Component featuring threaded process connections, a terminal head, and a spring-loaded interchangeable insert. The insert comprises a 6mm diameter stem, offering a choice between a mounting plate for a transmitter or a ceramic terminal block designed for electrical connections. A diverse selection of terminal heads is at your disposal (for more details, please consult page 18). Additionally, the component offers an extension neck, a hex nipple, or a NUN neck, each available in various lengths. Secure installation into a thermowell is facilitated through a fixed thread located on the extension neck.
This product is an industrial thermocouple sensor designed for various applications. It is offered in Type J, K, N, T, and other grades, available upon request. The thermocouple features a stem with a diameter of 6 mm. You can choose between a transmitter mounting plate or a ceramic terminal block for the purpose of electrical connection. The hot junction of the thermocouple can be configured as "grounded" or "ungrounded" from the sheath.
For convenience, the terminal head selection is highly customizable, with a wide array of standard options to choose from. Additionally, the product offers various accessories such as an extension neck, a hex nipple, or a NUN neck, each available in different lengths to suit specific needs.
Installing the thermocouple into a thermowell is facilitated by a fixed thread on the extension neck, ensuring secure and reliable placement.
Product design and drawing
Technical information
Measuring range
Designation
Type J (Fe-CuNi)
Type K (NiCr-Ni)
Type N (NiCr-NiSi)
Type T (Cu-CuNi)
Measuring range limits
-210 to +760 °C (-346 to +1400 °F)
-270 to +1100 °C (-454 to +2012 °F)
-270 to +1100 °C (-454 to +2012 °F)
-270 to +400 °C (-454 to +725 °F)
The above range may vary depending on limitations of electrical connection. chosen and the jacket material of the insert.
Accuracy
Standard
ASTM E230-03/ANSI MC96.1
Type
J (Fe-CuNi)
K (NiCr-Ni) N (NiCr-NiSi)
T (Cu-CuNi)
Special tolerance, the larger respective value applies
±1.1 K or ±0.004 |t| (0 to 760 °C)
±1.1 K or ±0.004 |t| (0 to 1260 °C)
±0.5 K or ±0.004 |t| (0 to 370 °C)
Operating conditions
Standard
Maximum ambient temperature
Without mounted head transmitter
Without mounted head transmitter
With mounted head transmitter
Special tolerance, the larger respective value applies
Depends on the terminal head and the cable glands used
-40 to 85 °C (-40 to 185 °F)
Standard insert diameters
Diameter (mm)
6.0
Standard stocked grades
ASTM 316, ASTM 310, Alloy 600
Standard process connections
Diameter (mm)
Compression fittings
Standard stocked grades
¼" NPT, ½" NPT, G½" (BSPP) Material: SS316
Head, electrical connection and display
Head (terminal enclosure)
This product is available in the complete range of heads
Transmitters (Optional)
We specialize in supplying thermocouples equipped with transmitters, enhancing both accuracy and reliability when contrasted with directly wired alternatives. Our selection encompasses a diverse array of transmitters that are PC-programmable, featuring:
- HART® Programmable Transmitters - Profibus® PA Head Transmitters - Foundation Fieldbus™ Head Transmitters
Displays (Optional)
We have the capability to supply thermocouples equipped with pluggable displays designed to show real-time measured data, identification details, and any occurrences of faults. This entails the necessity of employing an appropriate terminal head that features a display window.
Certificates and approvals
We offer the following certificates with our products:
Material Certificates
The 3.1 material certificate (according to EN 10204) for the wetted part can be supplied with the thermocouple (optional).
X-Ray Certificates
We can offer X-ray test reports done by independent subcontractors on the thermocouple weld and capping (optional).
Temperature Calibration Certificates
We have an in-house laboratory and can supply factory calibration certificates (optional).
Thermowells play a crucial role as protective instruments for primary sensing components such as RTD's and thermocouples. Their purpose is to facilitate temperature control, recording, and monitoring across a range of processes.
Constructed as the standard from SS316/L material, thermowells can also be crafted from alternative materials upon request. The selection of the appropriate thermowell material for a particular installation hinges on the prevailing corrosion conditions to which the thermowell will be exposed. In some cases, the chief consideration is mechanical strength, with corrosion resistance assuming a secondary role.

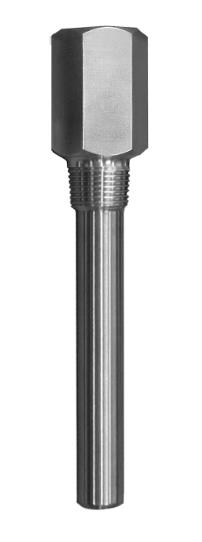

One specific model, known as TLSW1, functions as a versatile metal protection tube. This model features a threaded process and a welded-on adaptor for thermometer connection. The measurement termed as the immersion length (U) pertains to the distance from the heat-exposed end of the thermowell to the bottom of the thread or other corresponding connection point. To ensure accurate readings, the immersion length should be adequately sized, allowing the entirety of the temperature-sensitive section of the thermometer bulb or thermocouple element to extend into the medium whose temperature is being gauged. For thermocouples with short sensitive portions, thermowells featuring shorter immersion lengths are suitable. On the other hand, resistance (RTD) thermometers encompass sensitive portions ranging between 25 to 50 mm in length.

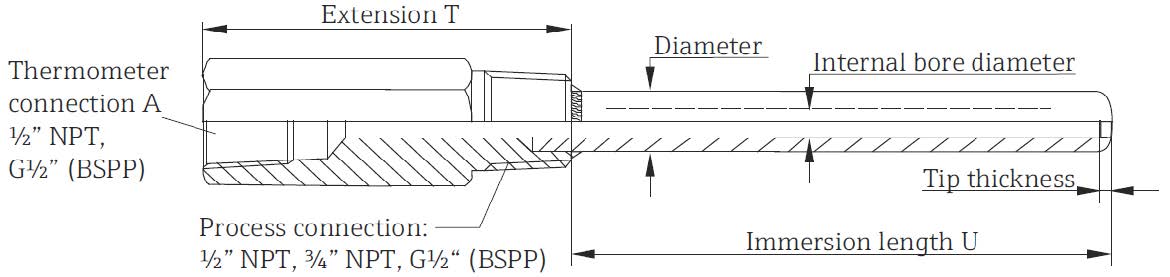

Product design and drawing
Technical information
Operating conditions
Maximum process pressure
Diameter
10mm
Pressure
5 MPa (50 bar) at 20 °C (68 °F)
3.3 MPa (33 bar) at 250 °C (482 °F)
2.4 MPa (24 bar) at 400 °C (752 °F)
12mm
7.5 MPa (75 bar) at 20 °C (68 °F)
5 MPa (50 bar) at 250 °C (482 °F)
3.5 MPa (35 bar) at 400 °C (752 °F)
¼” NB Sch. 40
7.5 MPa (75 bar) at 20 °C (68 °F)
5 MPa (50 bar) at 250 °C (482 °F)
3.5 MPa (35 bar) at 400 °C (752 °F)
¼” NB Sch. 80
10 MPa (100 bar) at 20 °C (68 °F)
6.7 MPa (67 bar) at 250 °C (482 °F)
4.6 MPa (46 bar) at 400 °C (752 °F)
Maximum process temperature
Up to +600°C

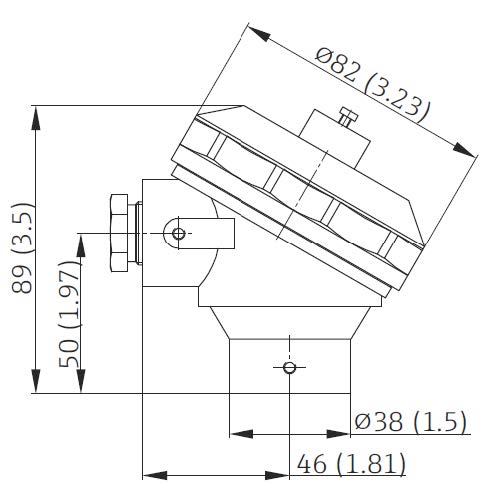

Thermocouple and RTD Heads
Type
KH:
Aluminium
Drawing and dimensions
Technical information
Protection class:
IP68
Ambient temperature range:
-50°C to 150°C
Material:
Aluminium
Cable entry:
M20x1.5
Colour:
Silver
Weight:
+- 300g

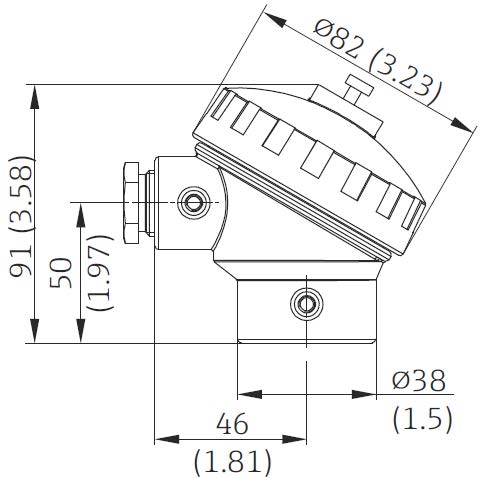

Type
KH:
PVC
Drawing and dimensions
Technical information
Protection class:
IP68
Ambient temperature range:
-40°C to 120°C
Material:
PVC
Cable entry:
M20x1.5
Colour:
Black
Weight:
+- 200g

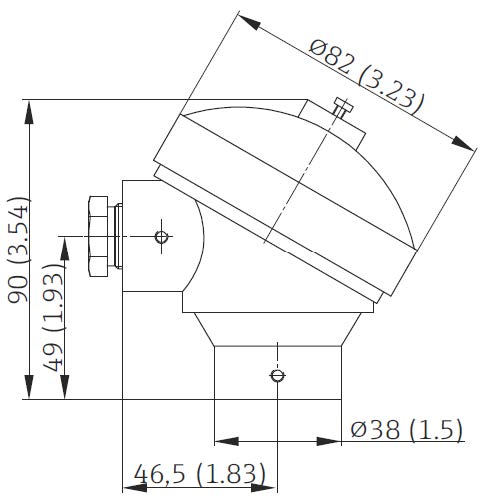

Type
KH:
Stainless Steel
Drawing and dimensions
Technical information
Protection class:
IP68
Ambient temperature range:
-50°C to 150°C
Material:
Stainless steel
Cable entry:
M20x1.5
Colour:
Natural
Weight:
+- 900g
Type
KH:
Aluminium, High Cover
Drawing and dimensions
Technical information
Protection class:
IP68
Ambient temperature range:
-50°C to 150°C
Material:
Aluminium
Cable entry:
M20x1.5
Colour:
Silver
Weight:
+- 350g

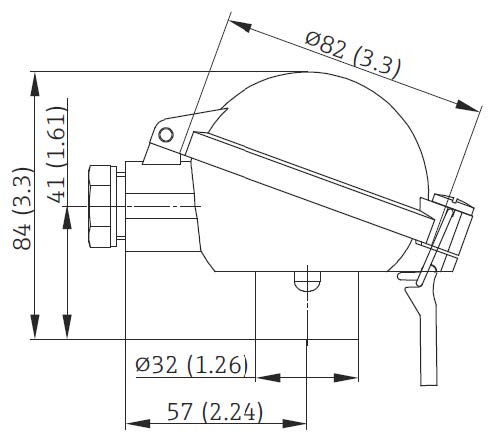

Type
BUZ
Drawing and dimensions
Technical information
Protection class:
IP66
Ambient temperature range:
-50°C to 150°C
Material:
Aluminium
Cable entry:
M20x1.5
Colour:
Silver
Weight:
+- 300g

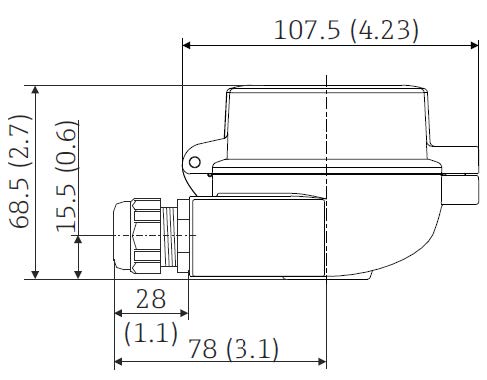

Type
TA30A
Drawing and dimensions
Technical information
Protection class:
IP66/68 (NEMA Type 4x)
Ambient temperature range:
-50°C to 150°C
Material:
Aluminium, powder coated
Cable entry:
½” NPT and M20x1.5
Colour:
Blue/Grey
Weight:
+- 330g

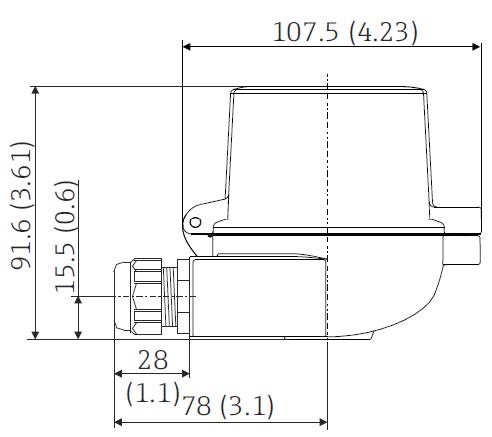

Type
TA30A
with display window
Drawing and dimensions
Technical information
Protection class:
IP66/68 (NEMA Type 4x)
Ambient temperature range:
-50°C to 150°C
Material:
Aluminium, powder coated
Cable entry:
M20x1.5
Colour:
Blue/Grey
Weight:
+- 420g

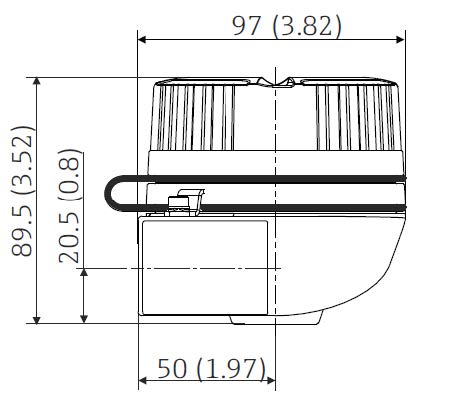

Type
TA30H
Flameproof, explosion protected, captive screw cap
Drawing and dimensions
Technical information
Protection class:
IP67
Ambient temperature range:
-50°C to 150°C
Material:
Aluminium
Cable entry:
M16x1.5
Colour:
Silver
Weight:
+- 150g
Certificates and approvals
We offer the following certificates with our products:
Material Certificates
The 3.1 material certificate (according to EN 10204) for the wetted part can be supplied with the thermocouple (optional).
X-Ray Certificates
We can offer X-ray test reports done by independent subcontractors on the thermocouple weld and capping (optional).
Temperature Calibration Certificates
We have an in-house laboratory and can supply factory calibration certificates (optional).
